Ford Cleveland Hi-Rise Dual Plane Manifold |
|||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |

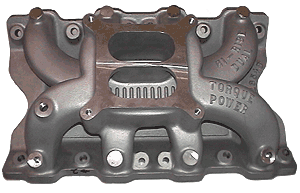

This state of the art Torque-Power hi-rise dual plane manifold has been designed for 302, 351 and stroker motors up to 400 cu in Cleveland V8 motors using 2V alloy or cast iron cylinder head configuration. |
|||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
The Torque-Power hi-rise dual plane delivers tremendous torque and horsepower from 1500-6800 rpm and offers great top end power with excellent throttle response. | The intake runners have also been designed so that at any chosen range between 1500-6800 rpm the velocity will be kept as high as possible for fuel atomisation so max torque and horsepower can be achieved. | ||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
 |
|||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||

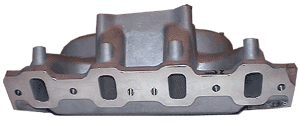

| The Torque-Power Hi-rise duel plane comes with a 1.95 square inch port face area and can also be port matched to suit your own application if necessary. | ||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
| The
Height of the manifold to the carby base is 6 1/4" and this manifold
includes 8 bosses that can be used for efi or nitrous application:
Part #009: Carby Model |
||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
 |
||||||||||
